$115.000,00

Descripción

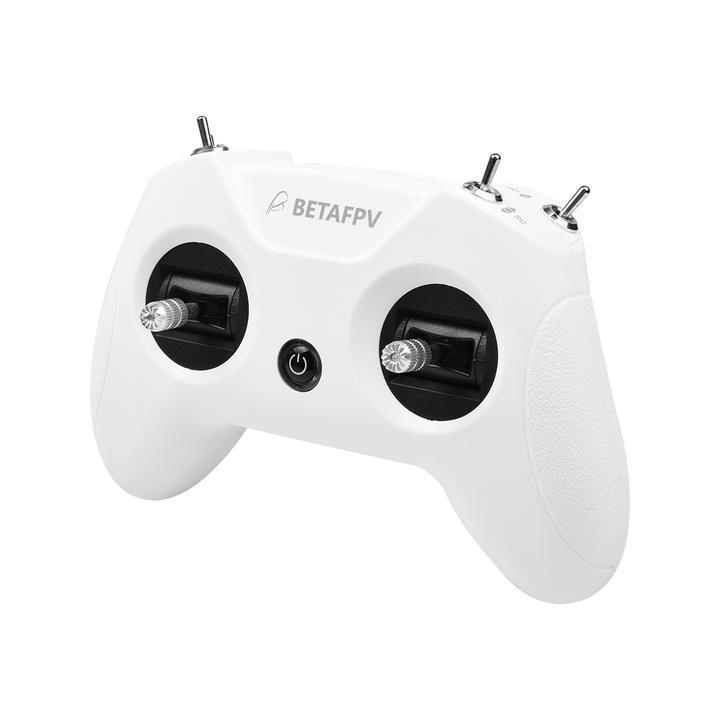

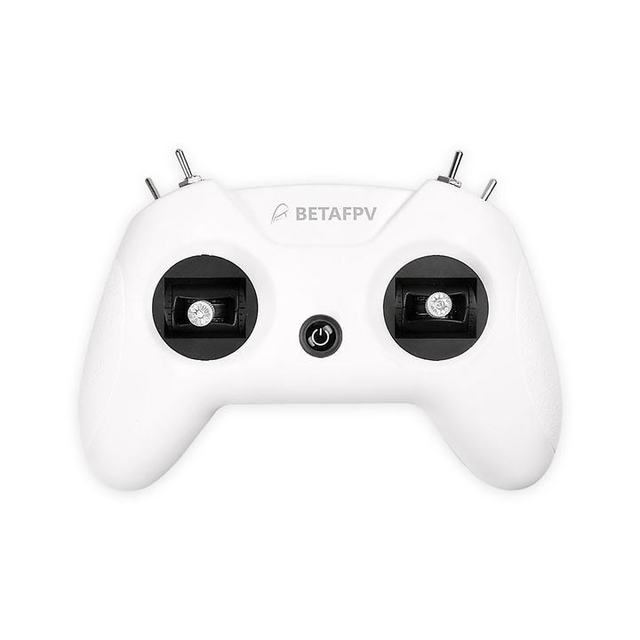

El Transmisor LiteRadio 2 SE es un control remoto utilizado para volar drones FPV, en nuestro caso del tipo Tiny Whoop. Está pensado para ser usado con el Meteor65, el Meteor65 HD o el Cetus, pero al operar con el protocolo FrSky (un protocolo muy popular en el hobby), podemos comprar o armar una amplia gama de drones que serán compatibles con este transmisor.

Su otra gran ventaja es que cuenta con un puerto USB-C con el que podemos conectarlo a una computadora y controlar un simulador de vuelo como Liftoff, DRL o Velocidrone de la misma manera que operaremos nuestro equipo en la vida real. Eso, sumado al hecho de que los sticks de comando están construidos sobre gimbals de tamaño completo, hace que este accesible control remoto sea una gran opción para alguien que quiere meterse en el mundo del FPV sin tener que reaprender a volar con cada upgrade que se haga en el camino.



Descripción original:



 LiteRadio 2 SE Radio Transmitter is the upgraded version based on LiteRadio 2 and comes with huge improvements.

  • Built-in 1000 mAh 1S battery, LiteRadio 2 SE increases the endurance to 8 hours.
  • Updates with BETAFPV self-developed LiteRadio System. Pilots can directly operate the Joystick Calibration and Upgrade Firmware on the radio transmitter.
  • Supports the Frsky / Futaba / Bayang, pilots can easily change Futaba, Frsky D8, Frsky FCC D16 and Frsky LBT D16 mode via the radio transmitter.
  • Comes with 100mW transmitting power, LiteRadio 2 SE brings a wider operating range.

Please kindly note: D16 (FCC&LBT) protocol currently does not support the Frsky receivers with ACCST 2.0 firmware or higher, and it can only bind with ACCST 1.X firmware version XM+ receivers.



Bullet Point

  • LiteRadio 2 SE upgrades with BETAFPV self-developed Customized LiteRadio System. Pilots can directly operate the Joystick Calibration and Firmware Update on the radio transmitter, which is more convenient for the beginner racer to operate.
  • Equipped with a built-in 1000 mAh 1S battery, LiteRadio 2 SE can use up to 8 hours, bringing an excellent endurance performance.
  • Comes with a built-in charging module, LiteRadio 2 SE can support USB charging which is more convenient to use. Meanwhile, it designs a Low-Power warning to indicate a low battery. While it needs to be re-charged(when the voltage is lower than 3.5V), the LED will turn red first, then it will turn blue and flash slowly.
  • Compared with the LiteRadio 2, LiteRadio 2 SE has a larger transmitting power that can reach 100mW, bringing a wider operating range.
  • Adopted the rubber coat, LiteRadio 2 SE is ergonomic and has the shape of a gaming controller. It's comfortable to hold, and the anti-slip texture on the handles allows for a solid grip.
  • This radio transmitter acts as a USB Joystick when connected to a personal computer. So you could use it to play FPV simulators like EREADRONE.
  • LiteRadio 2 SE transmitter has been equipped on the Ready-to-Fly FPV whoop racing advanced kit 2 and FPV whoop racing starter kit 2. It is one of the easiest ways to get into the hobby.

Specification

  • Item: LiteRadio 2 SE
  • Color: White
  • Frequency Range: 2.4G (2403MHz-2447MHz)
  • 2.4G System: NRF24L01 or CC2500
  • Channel: 8
  • Support Protocol: Bayang / Futaba S-FHSS / Frsky FCC D16/ Frsky LBT D16 / Frsky D8
  • Power: ≤100mw
  • Adapted Drone Type: Multirotor
  • Support USB Charging / Firmware Update
  • Support BETAFPV Simulator Connected / Customized LiteRadio System / Joystick Calibration
  • LED Light: Green-Power On / Red-Warning if the voltage is lower than 3.5V / Blue-Normal
  • Battery: Built-in 1000mAh 1S Battery
  • Charging Connector: USB 3.0 Type-C

Comparison of LiteRadio 2 SE and LiteRadio 2

   LiteRadio 2 SE LiteRadio 2
System Customized LiteRadio System Opensource OPENTX
Power Built-in 1000mAh 1S Battery Removable 350mAh 2S Battery
RF Power 100mW 80mW
Working Time 8 Hours 3 Hours
Protocols Frsky FCC D16/Frsky LBT D16/Frsky D8/Futaba S-FHSS, Bayang Frsky FCC D16/Frsky LBT D16 /Frsky D8, Bayang
Joystick Calibration Yes No(Could with OpenTX Companion)
Firmware Update Yes No

How to switch the protocol

To change protocols (Frsky FCC D16, Frsky LBT D16, Frsky D8, or Futaba S-FHSS), you have to power it off first, then press and hold the bind button while you power it back on. After that, the flash times of the red LED before buzzer alarms will change, and it will indicate which protocol it is on.
LED Status Protocol Version
Flash Once

Frsky FCC D16

(Only supports ACCST 1.X version)

Flash Twice

Frsky LBT D16

(Only supports ACCST 1.X version)

Flash Three Times  Frsky D8
Flash Four Times Futaba S-FHSS

Diagram of LiteRadio 2 SE

FAQ



Package

  • 1 * LiteRadio 2 SE Radio Transmitter
  • 1 * User Manual
